Vasilis

Version 1.0

About the Bot

Vasilis was my first large diameter vertical spinner combat robot. It competed in the 3 lb Beetleweight weight class and weighed in at 2.99 lb. The weapon boasts a diameter of 145mm (~5.7in) and has a 30 degree rake. In early testing it sliced 3 of its own belts before I designed and implemented a belt guard. It also suffered from weight issues causing the rear armor to have it’s size reduced to the point of near ineffectiveness. Despite all this, in it’s first fight it achieved a quick knockout putting the opposing bot out of commission for the remainder of the day. The design is somewhat inspired by the Battlebots Uppercut and Monsoon. Vasilis is named after the mythical sword of light and darkness from the fantasy novel series Fablehaven. A vastly improved version of this bot is currently in the works and will likely debut in early-to-mid 2026.

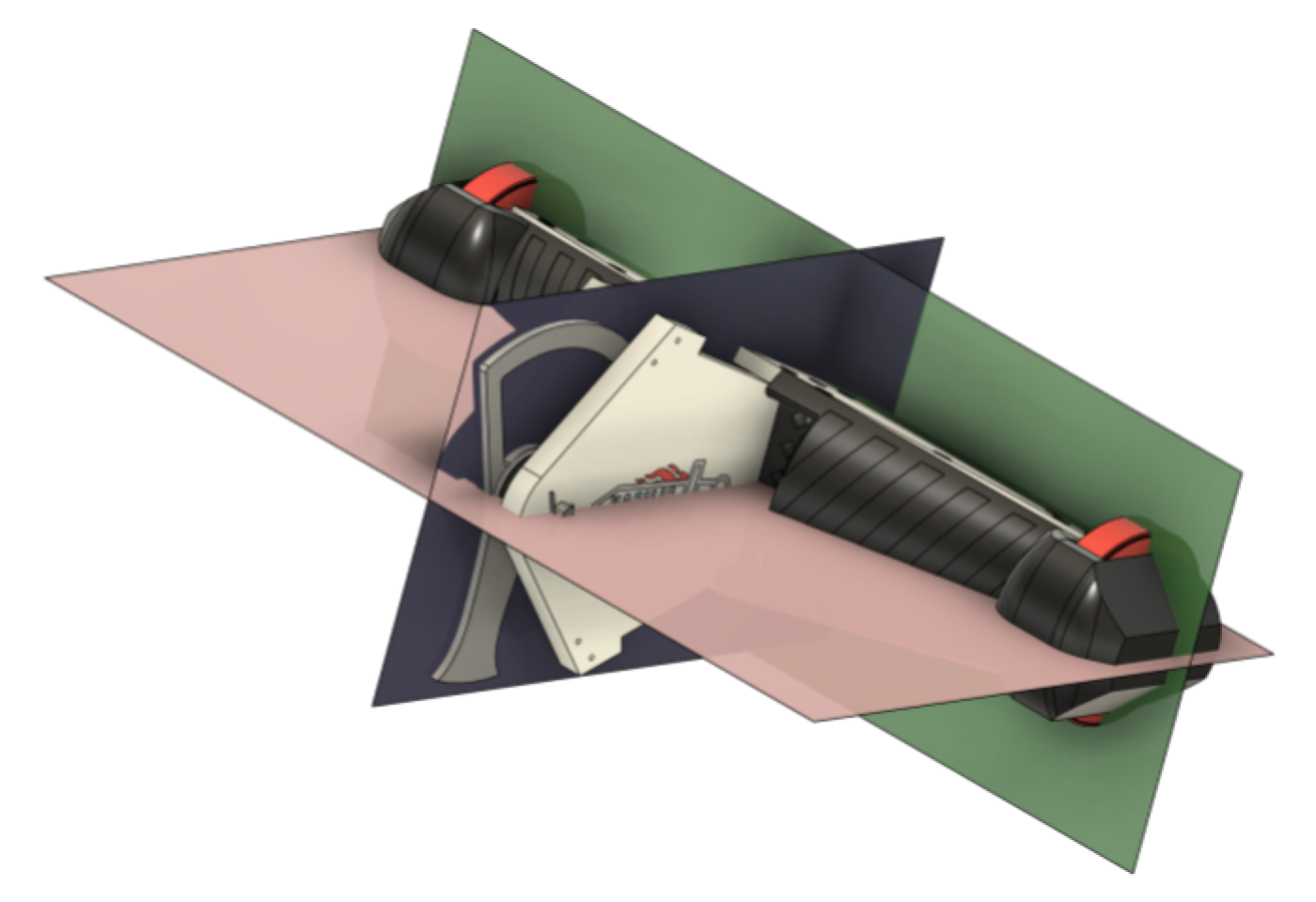

Complete Breakdown

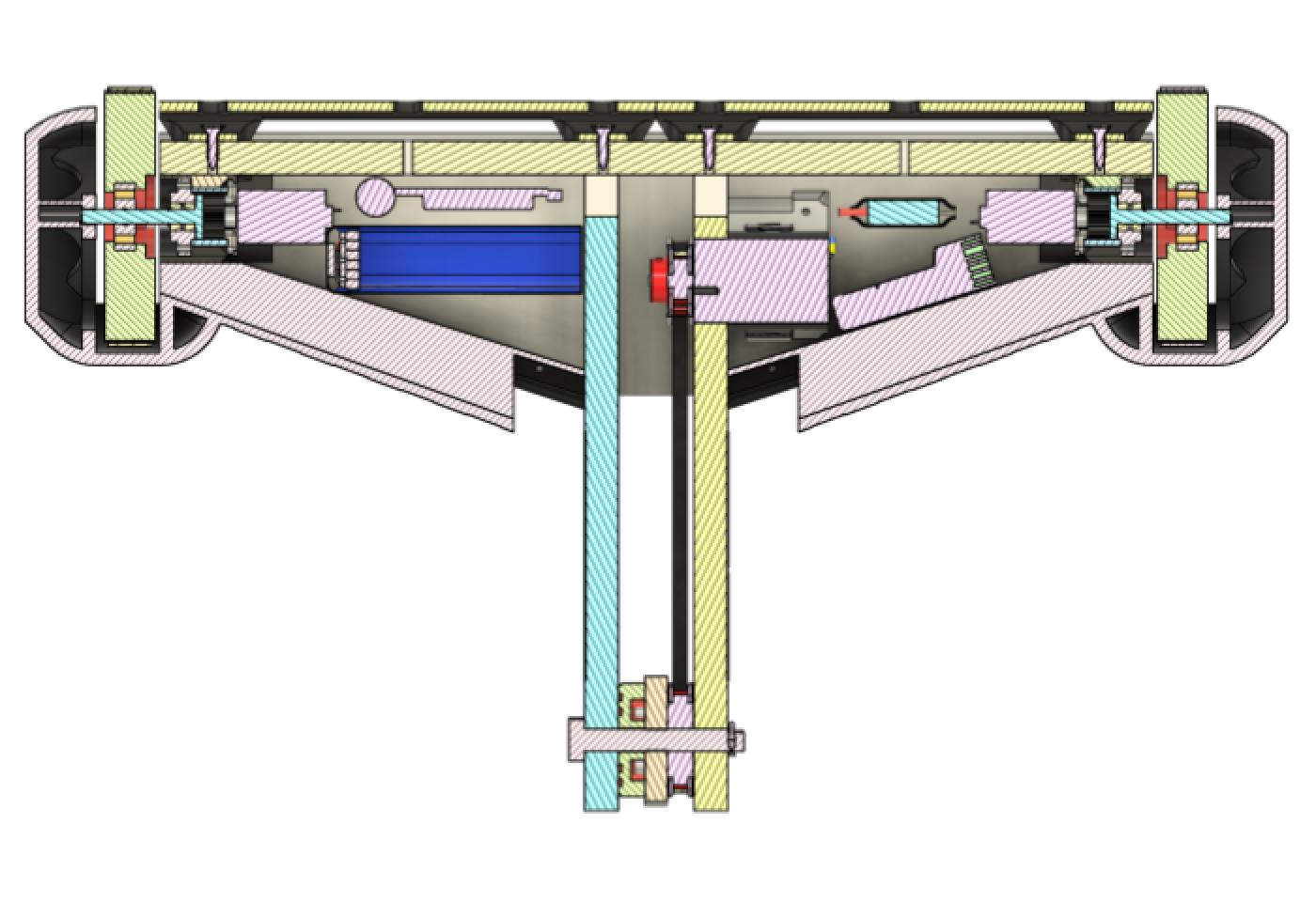

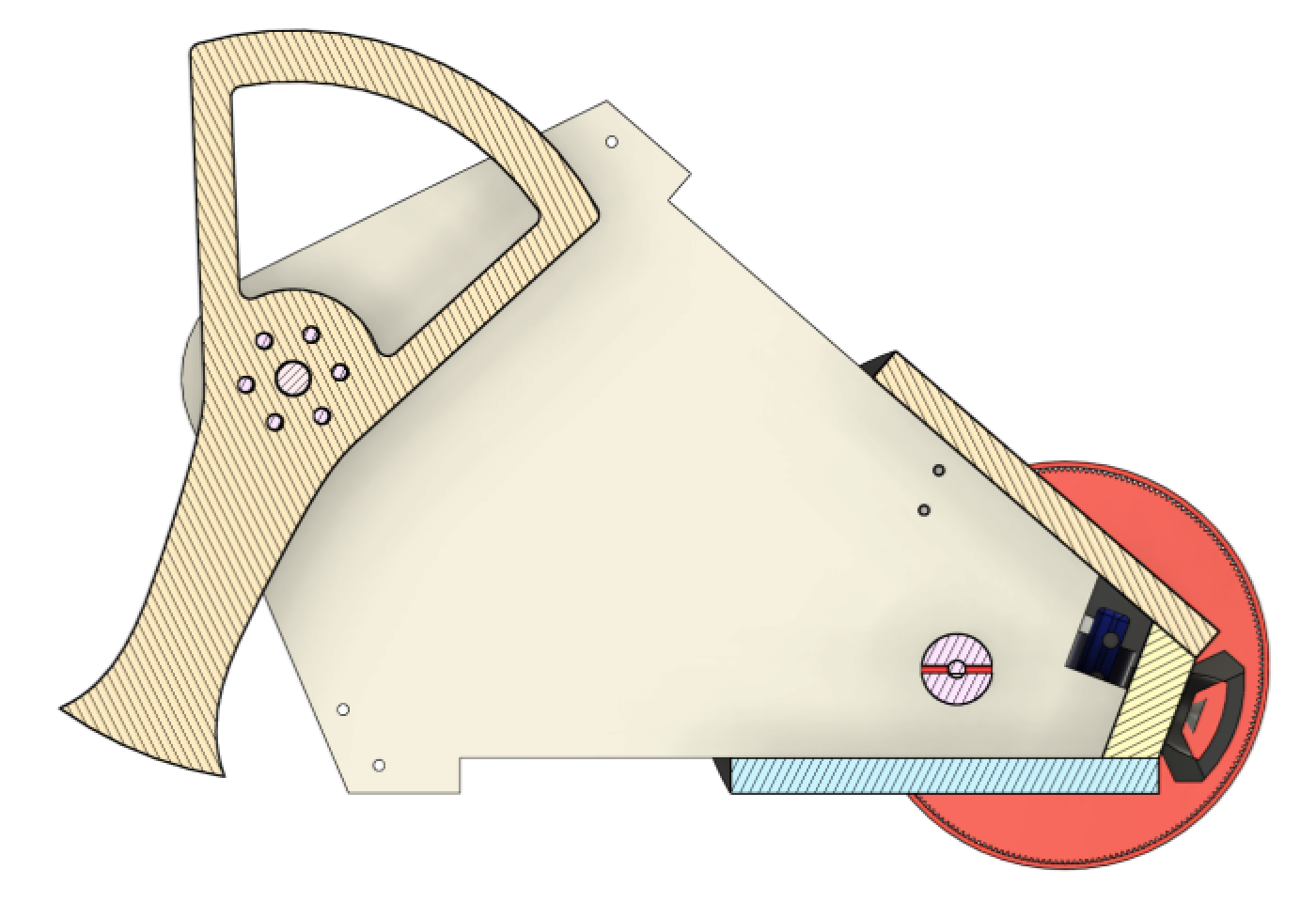

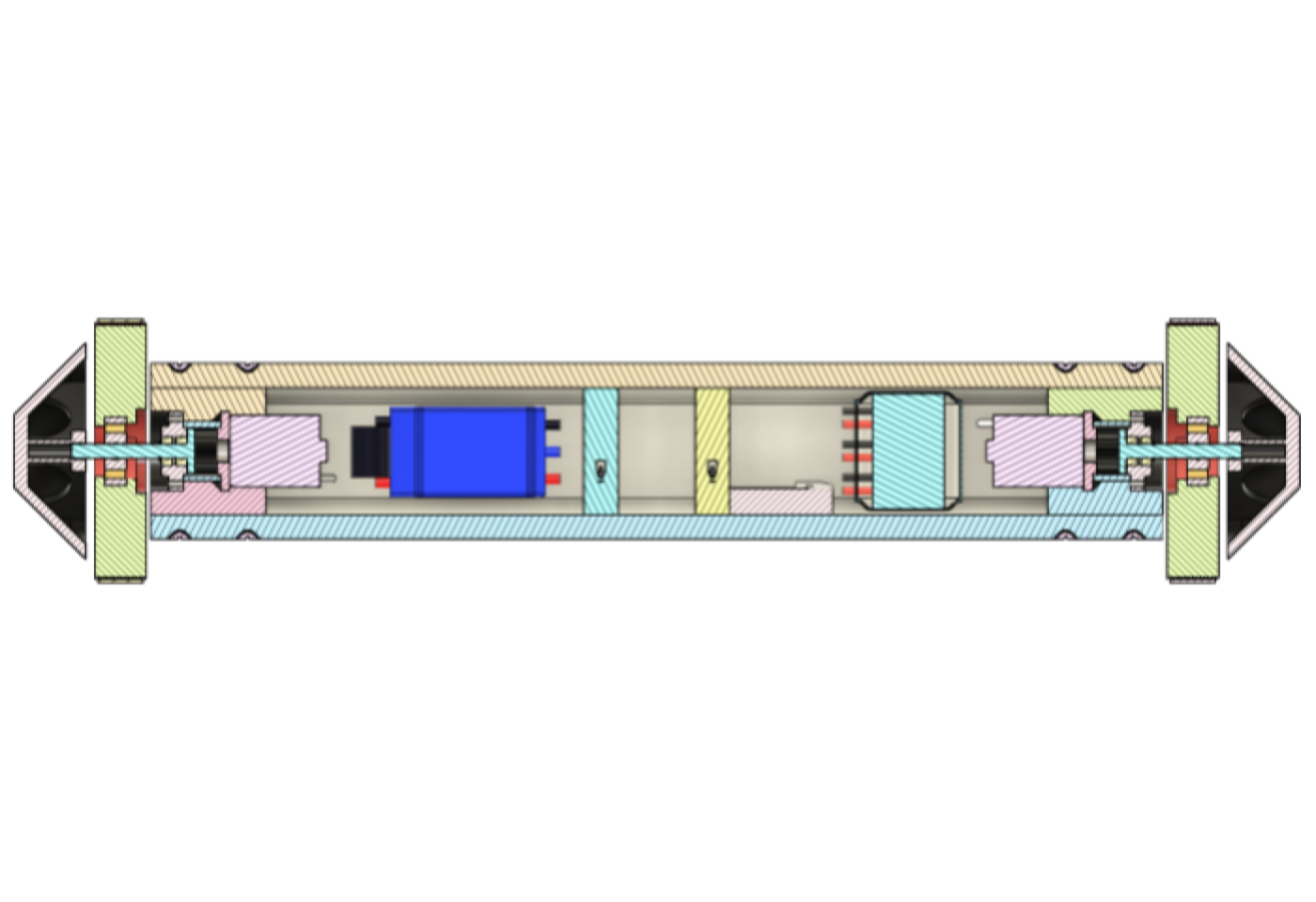

Section Views

Component Details

Front Armor • 95A TPU

Rear Armor • 95A TPU

Wheels • 95A TPU

Weapon Motor Mount • 95A TPU

Drive Motor Mounts • 95A TPU

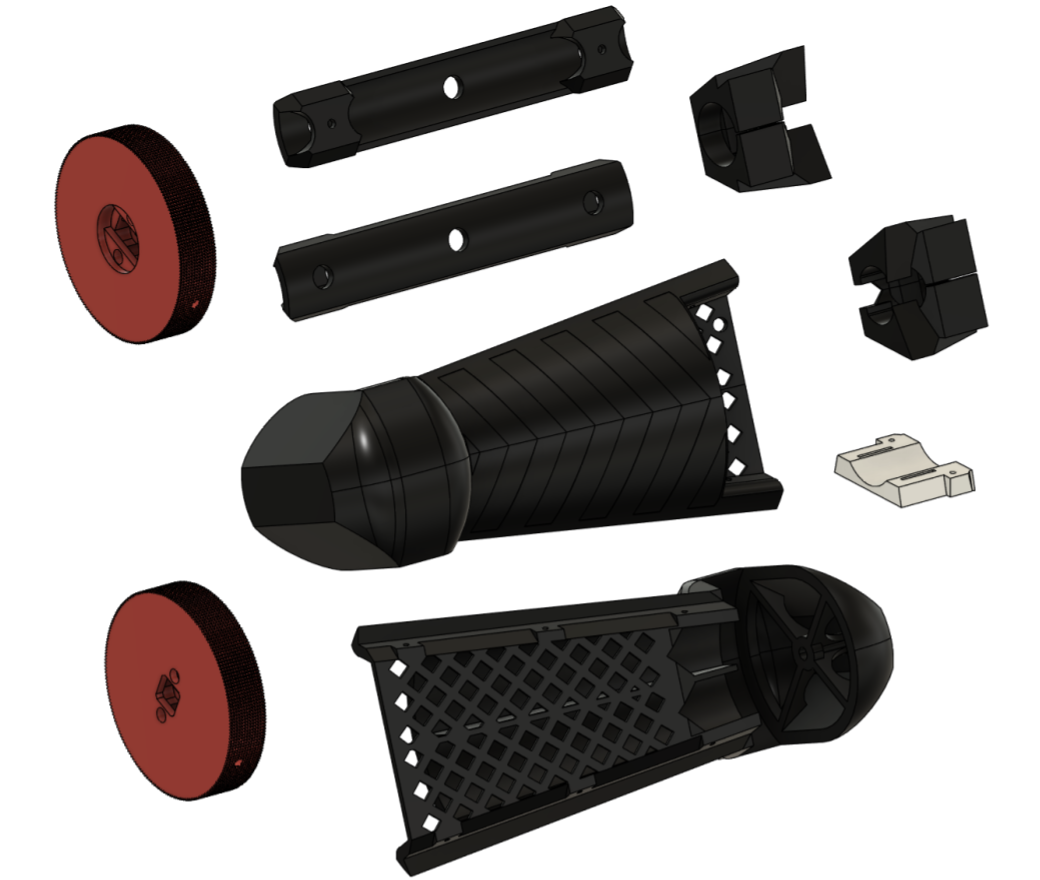

Printed Parts

Weapon • AR500 Steel

Weapon Uprights • 3/8” UHMW

Top and Bottom Plates • 1/4” UHMW

Rear Plate • 3/8” UHMW

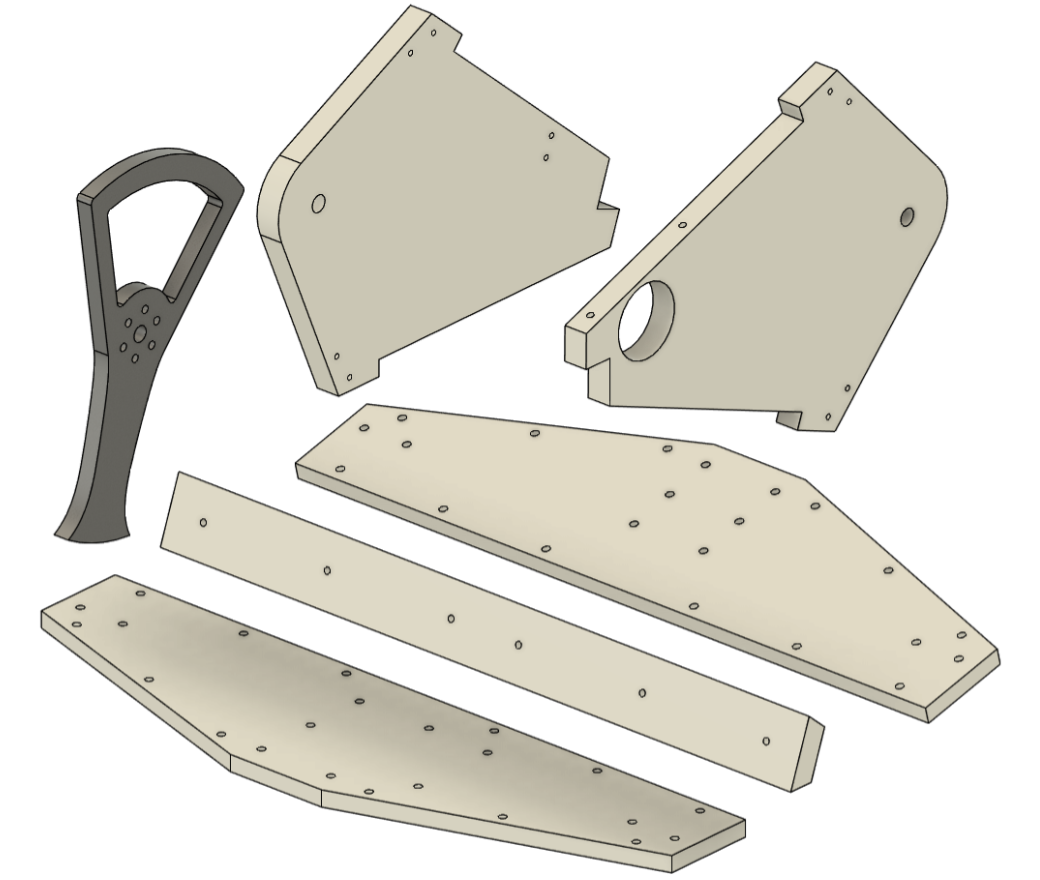

Machined Parts

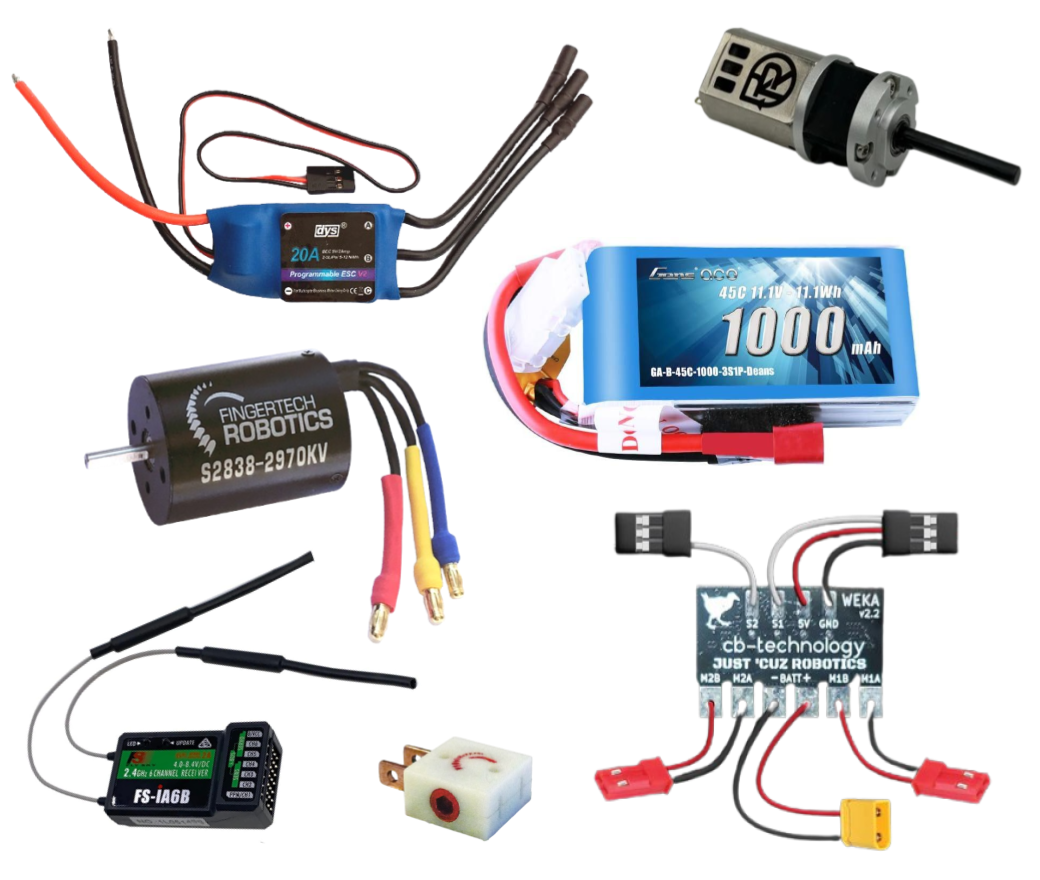

Battery Gens Ace 11.1V 1000mAh 3S 45C Lipo

Weapon Motor FingerTech S2838 Brushless Inrunner

Drive Motors Repeat Compact Brushed Gear Motor

Weapon ESC MB30020 20A Brushless ESC

Drive ESC WEKA 20A Dual Brushed ESC

Receiver Flysky FS-iA6B

Power Switch FingerTech Mini Power Switch

Electronics
